Integrated Control Rod Mount - You have to purchase this separately for other turnout controls
	Automatic Power Routing - Integrated SPDT switch with the option of adding an additional switch for DPDT
	Very Small Mounting Footprint - One of the smallest undermount footprints available
	Solid, Robust Operation - Thoroughly tested to over 100,000 operations!
	Full Selection of Supporting Products - Control rods, joiner kits, rod hangers, panel knobs, etc.

This version of the BullFrog comes un-assembled, and includes all of the parts you need to build a complete unit, including:

All pre-cut wood pieces Locking hardware Control wire 1 SPDT microswitch All screws, nuts & washers

To assemble the switch you will need white glue. a modeling knife, fine sandpaper, #2 philips screwdriver, and about 15 minutes of time. (The first one may take you a bit longer.)

The BullFrog is easy to mount under your layout with just two screws and will work with all scales from Z to O. The control wire offers high torque and a long throw, making it easy to mount the control with minimal alignment problems.

Use your own control rod, or purchase the control rod kit to connect the BullFrog to your control panel using a a nylon rod that includes a Z bend connector, and operation knob. We also offer a number of additional accessories.

Control Rod Kit		Panel Knobs		Control Rod Hanger
Control Rod Joiner		TadPole Mount		SPDT MicroSwitch

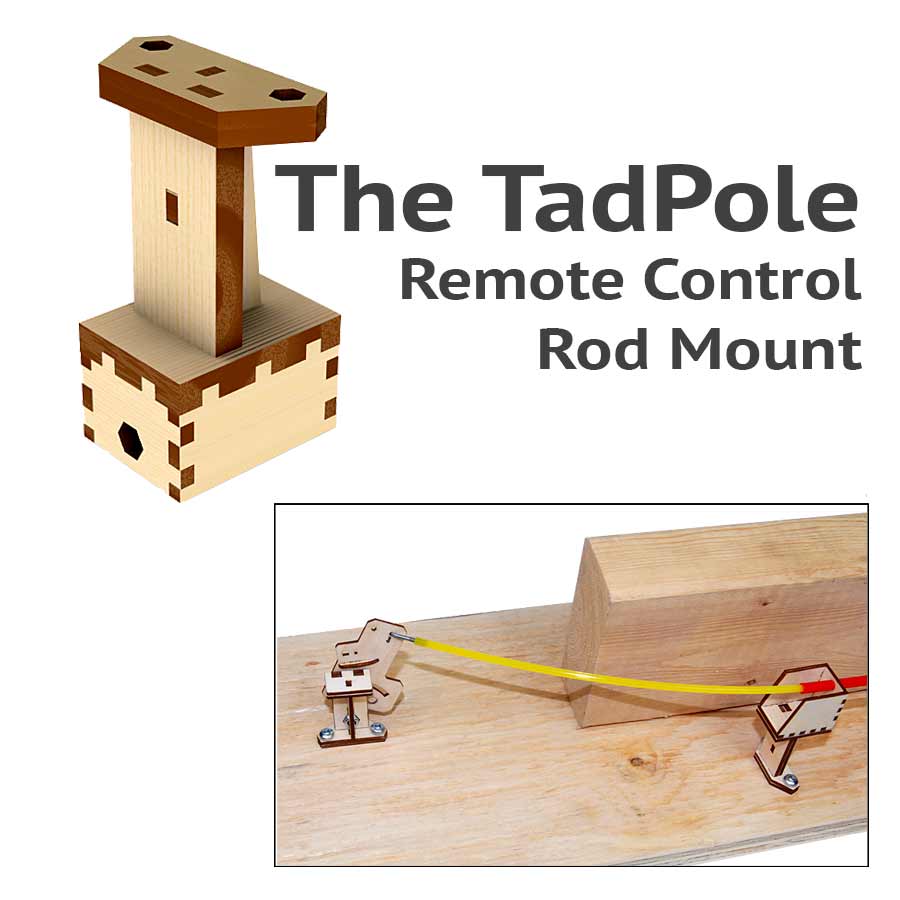

Need to mount the BullFrog in a really tight spot? Check out the TadPole. You can even go around corners!

Really tight for space? Then may want to consider ordering a TadPole. The TadPole eliminates the control rod mount on the BullFrog. Click here to learn more about how the TadPole works. If you are ordering a number of BullFrogs, we recommend that you order a couple of TadPole's as well for those really tight spots on your layout.


Will the BullFrog fit under your layout?

Download the detailed dimensional diagram of an assembled BullFrog to be sure.

The control rod (the rod that connects the BullFrog to your control panel) is sold separately.

The movement of the control rob is approximately 1".

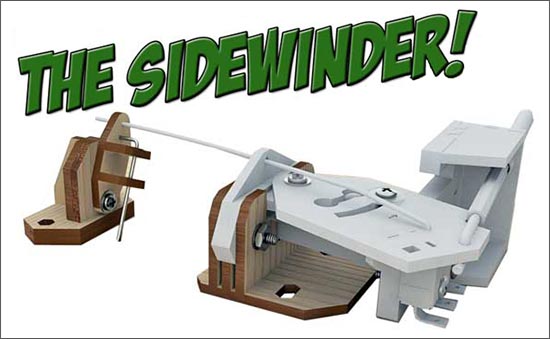

Need to fit a BullFrog switch machine into even less space?  Try our SideWinder Horizontal BullFrog Switch Machine Mounting Kit.  Fit a BullFrog Switch Machine into as little as 1 1/8"

---

Click on the links below to learn more about how Fast Tracks tools and supplies can help you build better railroads

Complete Bullfrog Assembly & Installation Guide
Free Videos Explain How Fast Tracks Assembly Fixtures Work
Have A Question? Visit Our Online Discussion Forum!

The BullFrog Switch Machine

How To Assemble The BullFrog - Part 1

Having trouble playing the videos? If the video starts and stops a lot, try pausing the video for a minute or two by clicking the pause button and then starting it again. This will buffer the video to your computer for smoother playback. If the video will not play at all, be sure you have the latest Flash player from Adobe.
