Dual gauge assembly fixtures are the most versatile turnout fixture that we offer. A single fixture can be used to build HO or HOn3 standard turnouts, as well as 11 different combinations of dual gauge turnouts. The assembly fixture in this kit can be used to construct trackwork for left hand and right hand, single and dual gauge HO/HOn3 turnouts with the narrow gauge track on the left side as shown in the image below..

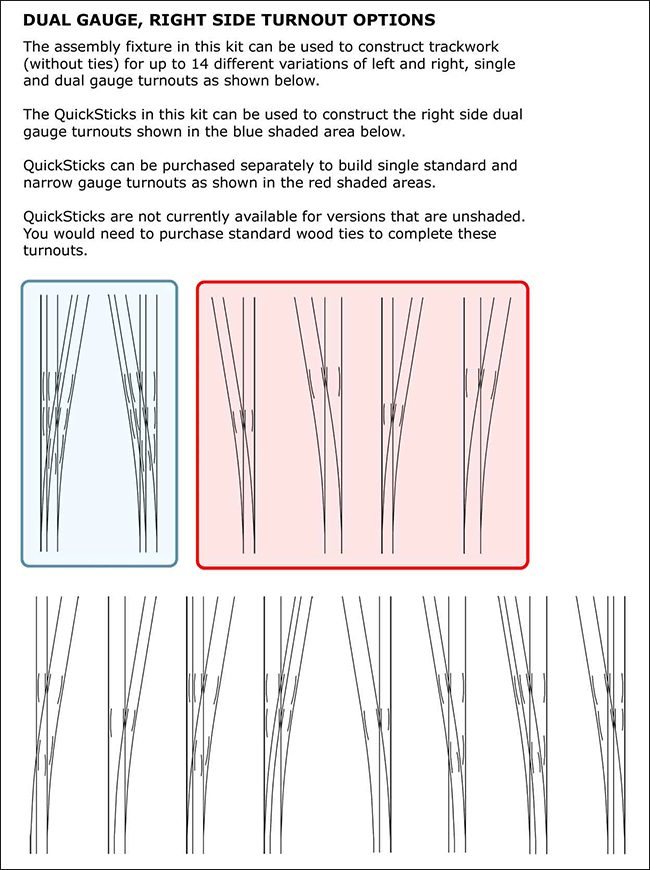

The QuickSticks included with this kit can be used to construct the right side dual gauge turnouts shown in the blue shaded area shown in the image below. QuickSticks can be purchased separately to build HO and HOn3 standard turnouts as shown in the red shaded areas. QuickSticks are not currently available for the versions that are unshaded. You need to purchase standard wood ties to complete these types of turnouts.


Click the image for a larger version with more details.


If you want to use the assembly fixture in this kit to build single gauge HO turnouts, you need to order our standard HO scale, #6 QuickSticks.

To build a single HOn3 turnout with this fixture, you need to order a special version of our HOn3 turnout QuickSticks for dual gauge assembly fixtures. Our standard HOn3 turnout QuickSticks will not work with this fixture.

Each kit comes complete with everything you need including:

• 1 - Fast Tracks Assembly Fixture for HO-HON3#6 dual gauge turnouts using Micro Engineering 55 rail (DF-HO-HON3-T-6-R-ME55)
• 1 - #6 Dual Gauge PointForm filing jig for the frog and switch points (PF-6-M-D)
• 1 - Bundle PC Board Ties for turnouts - enough to build 6 Turnouts (PB-HO-S)
• 1 - 15ft Coil .015 inch (46 cm) small diameter solder (SP-0003 )
• 1 - Tube Pliobond contact cement with 2 micro dispensing tips (SP-0001)
• 2 - #6 QuickSticks laser cut wood ties (LT-HO-HON3-T-6-LR )
• 2 - #6 QuickSticks laser cut wood ties (LT-HO-HON3-T-6-RR )
• DVD with a complete set of illustrated Users\' Guides, videos and printable tie templates
• Our satisfaction guarantee!

To order other supplies for this kit, click on the Related Items tab at the top of this page.

This kit does not include rail. If you need rail you can order the same kit with enough rail to build 4 switches.

---

Click on the links below to learn more about how Fast Tracks tools and supplies can help you build better railroads
Assembly Fixture Builders Guide
Dual Gauge Assembly Fixture Users Guide
Building Template For Dual Gauge Left Side Turnouts
Have A Question? Visit Our Online Discussion Forum!

Default Turnout Length	11.5" (292 mm)	This is the length of the turnout on the QuickSticks. Measured from end tie to end tie.
Minimum Turnout Length	7.9" (201 mm)	This is the shortest possible turnout length. Measured from the end PC board tie to end PC board tie.
Diverging Route Angle	9.46 (Decimal) 9° / 27' / 36" (D/M/S) 1:6 (Ratio)	Decimal - The frog angle in decimal degrees. D/M/S - The frog angle in Degrees / Minutes / Seconds Ratio - The frog angle expressed as a ratio.
Diverging Route Radius	43"	The minimum radius in a straight turnout.
Tie Spacing (Prototype)	20" (508 mm)	The distance between each tie.
Tie Size (Model)	L - 1.17" (29.7 mm) W - 0.1" (2.6 mm) H - 0.08" (2 mm)	The actual size of the tie.
Tie Size (Prototype)	L - 8.5' (2591 mm) W - 9" (229 mm) H - 7" (178 mm)	The original tie size that the model was based on.
Secondary Frog Angle	15.6°	The second frog angle for any switch that has two frogs. (Slip switches, 3-ways, dual gauge switches, etc)
Track Gauge (Standard)	0.66" (16.8 mm)	The distance between the standard gauge stock rails.
Track Gauge (Narrow)	0.42" (10.7 mm)	The distance between the narrow gauge stock rails.
Track Spacing	NA	The center to center distance of the parallel track. (Only applies to double crossovers)
Substitution Radius	69"	The approximate radius that a straight turnout can be inserted into.
Fixture Size	L - 11" W - 6" H - 0.25"
Fixture Weight	1.325 (Lbs)
Fixture Material	6061 Aluminum

This is the first and last videos in our Using Fast Tracks Assembly Fixtures video series. To watch the complete series of videos, visit our video library.
